We are sizing Nutanix HCI with 10 nodes, First cluster with compute having 4 nodes and Second cluster with 6 nodes for Object Storage.
We need license suggestions here, and clarity on if we use some of the storage space from second cluster for the VMs do we still need the NUS license, or on first cluster if we use the 194TB for VMs do we need to purchase NUS? Need suggestion if sizing can be optimized. There is GPU as well for 4 compute nodes, which is separately license by Nvidia.
Hi Shubham,
I guess you want to license the first cluster with NCI. With the core based licensing of NCI you have 1 TB free capacity available for Files and Objects Storage - if you need more storage for nutanix objects or nutanix file services you can add additional licenses there. Your User VMs can consume as much space as they get from the cluster without any additional license.
on the second cluster I guess you want to purchase a NUS license.
Nutanix Unified Storage can be deployed in two possible ways:
When running in dedicated mode, a max of 1 user/application VM is allowed per node in the cluster excluding any system VMs (CVM and FSVMs). If more user/application VMs are needed, the cluster must be configured in mixed mode with the appropriate NCI or NCP licenses.
Nutanix Cloud Platform Software Options #NCI
Nutanix Cloud Platform Software Options #NUS
Hope this helps!
best regards
Manfred
Hi
The below link provides more information on the license features.
Nutanix Cloud Platform Software Options
Regards,
Karthik Kova
Hi Shubham,
Based on your details, it seems you will use the first 4 nodes (Cluster 1) as your Production Cluster, in which case you can use NCI as your license. You may check the features that you need here: Nutanix Cloud Platform Software Options - NCI and then use the appropriate tier based on those features. (Starter, Pro, or Ultimate)

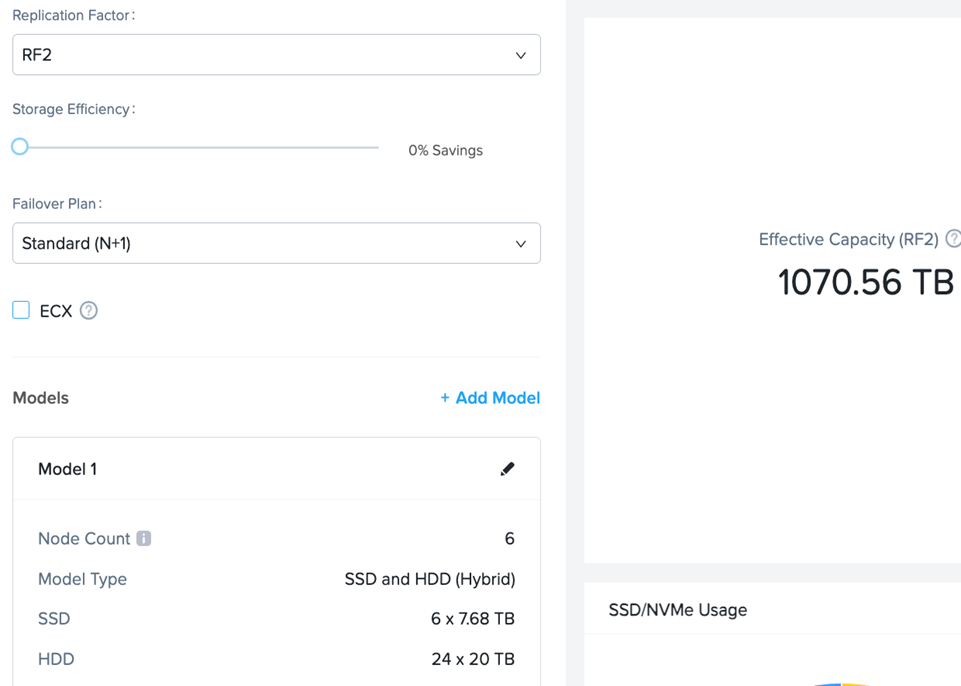

And then your second cluster (6 nodes), seems to be using HPE DX 4120, which is great to use in File Storage or Object storage. Since you have GPUs in your first cluster, I assume you’d be using the second cluster as repositories for S3 data. Dedicated Mode for NUS will be used for this. NUS Starter should suffice if you don’t plan on using the secondary cluster as file share. Using it as File Share would upgrade your license to NUS Pro.
If you have unpredictable growth in data, maybe you should also consider getting NCM Starter to have that Capacity Based planning capability and help you analyse your storage consumption for both clusters, it might help you to plan ahead if resources will be needed.
Hope this helps!
-Vahn
